Integrations

What are Integrations?

Integrations allow you to connect external platforms (APIs, databases, services) to your Splox workflows. Each integration stores encrypted credentials and authentication details, enabling secure access to external resources.

Secure Authentication

Credentials encrypted at rest with AES-256

Multiple Auth Methods

OAuth2, API Keys, Bearer Tokens, Custom Auth

User-Owned

Each user manages their own integrations

Workflow Access

Tool nodes use integrations to access platforms

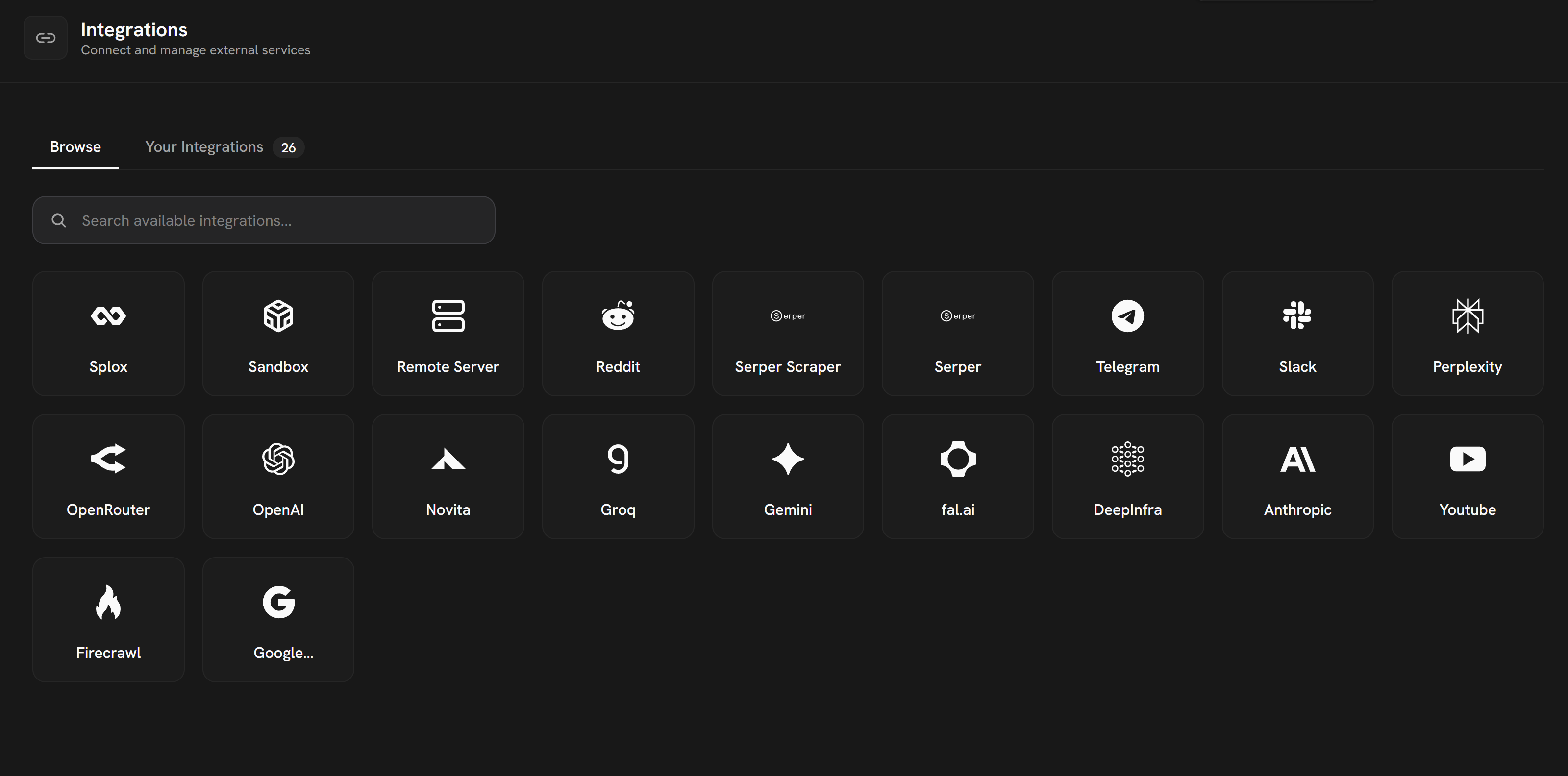

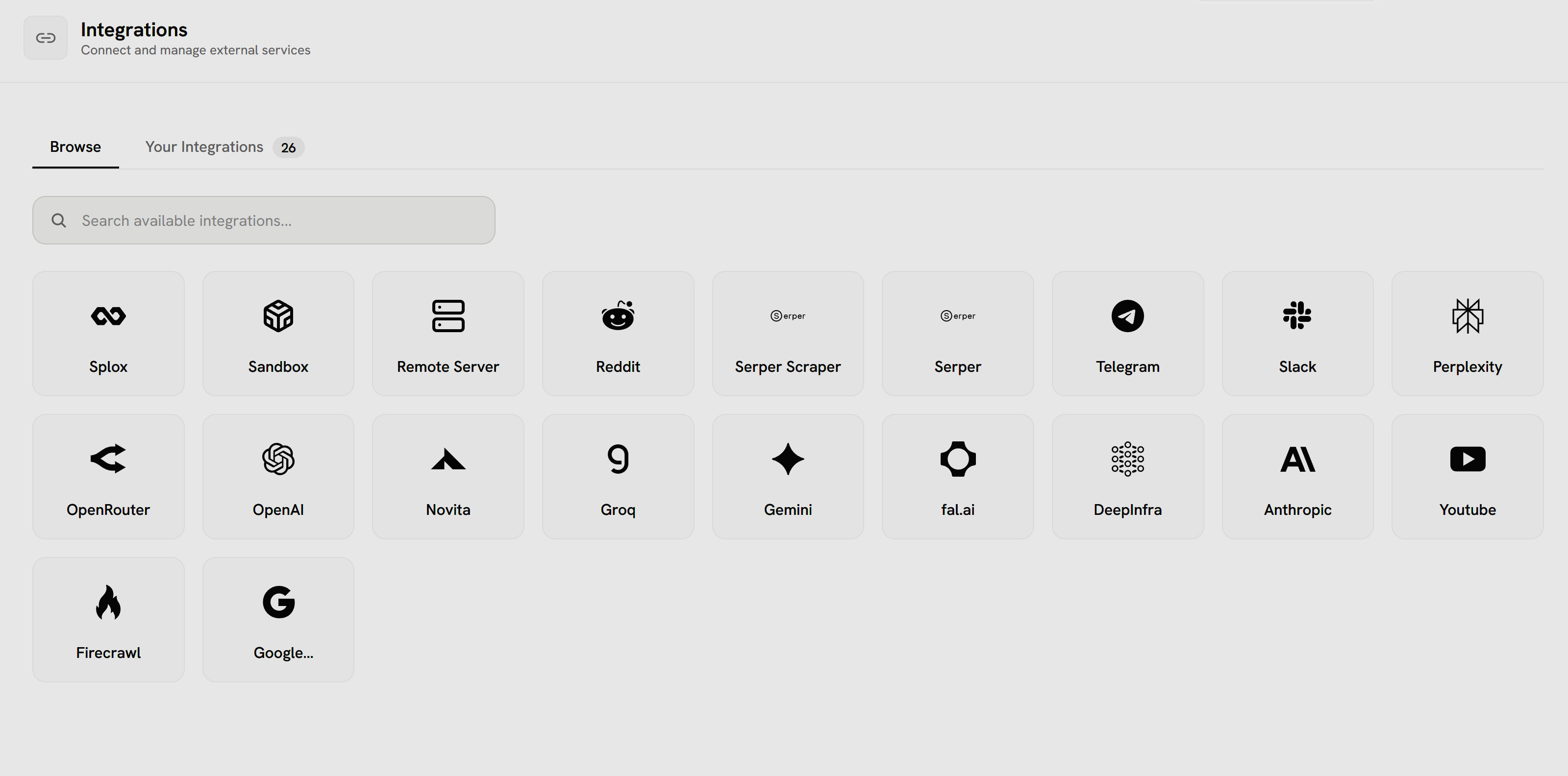

Integrations Browse - Available platform integrations including Splox, Sandbox, Remote Server, Reddit, Serper, Telegram, Slack, Perplexity, OpenAI, Anthropic, and more

In this example:

Browse tab shows all available integrations
Your Integrations tab (26) shows connected accounts
Search bar to find specific platforms
Grid of available platforms with icons:
- Internal: Splox, Sandbox, Remote Server
- Social: Reddit, Telegram, Slack
- AI: OpenAI, Anthropic, Gemini, Groq, Novita, DeepInfra
- Tools: Serper Scraper, Perplexity, OpenRouter, Firecrawl, Google
- Media: Youtube

How Integrations Work

Connect Platform

User creates an integration by connecting their account to a platformExample: Connect your Gmail account via OAuth2Splox securely stores access tokens and refresh tokens

Configure Tool

In a workflow, add a Tool Node and select the integrationExample: Add “Send Email” tool node, select Gmail integrationTool is authorized to use your Gmail account

Workflow Execution

When the workflow runs, the tool:

Loads encrypted credentials from integration
Authenticates with the platform
Executes the operation
Returns results

Example: Tool sends email via Gmail API using your credentials

Automatic Token Refresh

If OAuth2 tokens expire, Splox automatically:

Uses refresh token to get new access token
Updates stored credentials
Retries the operation

No manual intervention needed

Integration Components

Platform

A platform represents an external service (e.g., Gmail, Slack, Anthropic, OpenAI). Platform Properties:

Platform ID: Unique identifier (e.g., gmail, slack)
Name: Display name
Adapter: Backend service handler
Auth Methods: Supported authentication types
Operations: Available API actions

User Integration

A user integration is your personal connection to a platform. Properties:

Label: Custom name for this integration
Platform ID: Which platform this connects to
Auth Method: How you authenticate (OAuth2, API Key, etc.)
Credentials: Encrypted authentication data
Status: Active or inactive

Example:

{
  "id": "uuid-123",
  "label": "My Gmail Account",
  "platform_id": "gmail",
  "auth_method": "oauth2",
  "credentials": {
    "access_token": "encrypted...",
    "refresh_token": "encrypted...",
    "expires_at": "2025-10-23T10:00:00Z"
  },
  "is_active": true
}

Tool Configuration

Tools reference integrations to access platforms. Tool Node Settings:

Integration ID: Which user integration to use
Operation: Which API operation to execute
Input Data: Parameters for the operation

Special Integration: Sandboxes

Unlike typical integrations that connect to external services, Sandboxes provide persistent code execution environments.

While sandboxes appear in the integrations browse list and are accessed through the integrations system, they work fundamentally differently from API-based integrations. They’re important enough to have their own Core Concept page.

Key Differences:

Aspect	Typical Integration	Sandbox Integration
Purpose	Call external APIs	Execute arbitrary code
State	Stateless API calls	Persistent environment
Lifecycle	No lifecycle	running → paused → destroyed
Resources	API rate limits	CPU, memory, disk allocation
Cost Model	Per API call	Per compute minute + storage
Use Cases	Send emails, query data	AI agents, data processing, ML

Why Sandboxes Are Special:

Maintain state across workflow runs (files, packages, processes)
Can be paused to save costs while preserving state
Require unique management (timeouts, cleanup, resource limits)
Enable stateful AI agents and long-running computations

Learn more about Sandboxes →

Authentication Methods

OAuth2
API Key
Bearer Token
Custom Auth

Best for: Services with user authorization flowsHow it works:

User clicks “Connect” button
Redirected to platform for authorization
Platform redirects back with auth code
Splox exchanges code for access + refresh tokens
Tokens stored encrypted

Examples: Gmail, Google Drive, Slack, GitHubBenefits:

Most secure (user grants explicit permission)
Automatic token refresh
Revocable access

Creating Integrations

Navigate to Integrations

Click Integrations in the sidebarView all your connected platforms

Add New Integration

Click New IntegrationBrowse available platforms or search

Choose Platform

Select the platform you want to connectExample: Select “Gmail” from the list

Authenticate

Follow the authentication flow:OAuth2: Click “Connect” → Authorize in popupAPI Key: Paste your API key → SaveSplox verifies credentials and stores them encrypted

Label Integration (Optional)

Give your integration a custom nameExample: “Work Gmail” vs “Personal Gmail”Useful when connecting multiple accounts

Use in Workflows

Your integration is ready!Add Tool Nodes and select this integration

Using Integrations in Workflows

In Tool Nodes

Add Tool Node

Drag a Tool Node onto the canvas

Select Platform

Choose the platform (e.g., Gmail)Only platforms with active integrations are available

Choose Integration

Select which integration to useExample: “Work Gmail” vs “Personal Gmail”

Select Operation

Pick the API operationExample: “Send Email”, “Search Messages”, “Get Thread”

Configure Input

Set operation parametersCan use variable mappings from previous nodesExample:

{
  "to": "{{ user_data.email }}",
  "subject": "Your Report",
  "body": "{{ report_output.text }}"
}

Multiple Integrations

Workflows can use multiple integrations:

Gmail for emails
Slack for notifications
OpenAI for LLM calls
Google Sheets for data storage

Each tool references its own integration.

Security

Encryption at Rest

All credentials encrypted with AES-256

Access tokens
Refresh tokens
API keys
Private keys
Other secrets

Encryption keys managed by Splox infrastructure

Encryption in Transit

TLS 1.3 for all API requests

Credentials never sent unencrypted
Platform communication over HTTPS
Secure OAuth2 flows

Access Control

User-scoped integrations

Users can only access their own integrations
Workflows inherit user’s integrations
No cross-user credential sharing
Role-based access in teams (future)

Token Refresh

Automatic OAuth2 token management

Detects expired tokens
Uses refresh token automatically
Updates stored credentials
Transparent to workflow execution

Revocation

User control over access

Deactivate integrations anytime
Delete integrations (soft delete)
Revoke in platform directly
Workflows fail gracefully when integration deactivated

Managing Integrations

View Integrations

See all connected platforms
Check auth status (active/expired)
View last used timestamp
Filter by platform

Edit Integrations

Update label/name
Refresh credentials (OAuth2)
Update API key
Test connection

Deactivate Integrations

Temporarily disable without deleting
Workflows using this integration will fail
Can reactivate anytime

Delete Integrations

Soft delete (can be restored)
Workflows fail gracefully
Removes from integration list

Best Practices

Label Your Integrations

Use descriptive names❌ “Gmail Integration”✅ “Work Gmail - [email protected]”Especially important when connecting multiple accounts

Use Separate Integrations for Different Purposes

Don’t mix contexts

Personal Gmail vs Work Gmail
Production Slack vs Test Slack
Dev OpenAI key vs Prod OpenAI key

Better isolation and billing tracking

Monitor Usage

Track API consumption

Check usage stats per integration
Set up alerts for high usage
Review costs regularly

Prevents unexpected bills

Test Before Production

Verify integrations work

Test workflows before enabling
Use test/sandbox accounts when available
Check error handling

Catch issues early

Rotate Credentials Regularly

Maintain security hygiene

Regenerate API keys periodically
Reauthorize OAuth2 connections
Review connected apps

Reduces risk of compromised credentials

Common Use Cases

Email Automation

Send emails via Gmail or Outlook

Customer notifications
Report delivery
Alert emails
Newsletter automation

Team Communication

Post to Slack

Workflow status updates
Error notifications
Team alerts
Daily summaries

AI Services

Call LLM APIs

OpenAI GPT models
Anthropic Claude
Custom AI services
Image generation

Data Storage

Read/write to external data

Google Sheets
Airtable
Notion databases
Cloud storage

Troubleshooting

Integration Connection Failed

Symptoms: Can’t authorize platformSolutions:

Check pop-up blockers (OAuth2)
Verify API key is correct
Ensure platform account is active
Try reconnecting

Workflow Fails with Auth Error

Symptoms: “Integration not found” or “Auth failed”Solutions:

Check integration is still active
Verify workflow has access to integration
Refresh OAuth2 token
Check if API key expired

Rate Limit Errors

Symptoms: “Too many requests” errorsSolutions:

Reduce workflow frequency
Implement backoff/retry logic
Upgrade platform plan
Use multiple integrations (round-robin)

Permission Denied

Symptoms: “Insufficient permissions” errorsSolutions:

Check OAuth2 scopes granted
Verify API key has required permissions
Reauthorize with correct scopes
Check platform role/permissions

What’s Next?

Tool Nodes

Learn how to use integrations in workflows

Available Platforms

Browse all supported integrations

OAuth2 Setup

Detailed OAuth2 connection guide

Webhooks

Trigger workflows from external events
