LLM Node

Purpose: Execute AI model completions with tool calling, streaming, and memory The LLM node is the core of agentic workflows, enabling AI models to generate responses, make decisions, and use tools.

Configuration

Label

Description: A user-defined name to identify this LLM node in your workflow.Type: StringRequired: YesExample:

"Customer Support Agent"
"Code Generator"
"Research Assistant"

Integration

Description: Select the LLM provider integration you want to use (OpenAI, Anthropic, OpenRouter, etc.).Type: Select (Dynamic)Required: YesOptions: Dynamically loaded from your connected LLM integrations:

OpenAI
Anthropic
OpenRouter
Custom providers

Setup:

Go to Integrations page
Connect your LLM provider
The integration appears in this dropdown

You must connect an LLM integration before you can use the LLM node. Multiple integrations from the same provider can be added with different labels.

Model

Description: Select the specific AI model to use for completions.Type: Select (Dynamic)Required: YesVisibility: Only shown after Integration is selectedOptions: Dynamically filtered based on selected integration:

OpenAI: GPT-4o, GPT-4 Turbo, GPT-3.5 Turbo, o1-mini, o1-preview
Anthropic: Claude 3.5 Sonnet, Claude 3 Opus, Claude 3 Haiku
OpenRouter: 200+ models from various providers

Example:

gpt-4o
claude-3-5-sonnet-20241022
deepseek/deepseek-chat

Different models have different capabilities, costs, and context windows. Check the Providers docs for pricing and features.

Response Mode

Description: Defines the format of the model’s output.Type: SelectRequired: YesVisibility: Only shown after Model is selectedOptions:

Tool Calling - LLM can call connected tools and functions (for agentic workflows)
JSON - LLM returns structured JSON matching a defined schema
Text - LLM returns plain text response (default chat mode)

When to Use:

Tool Calling: Building agents that need to take actions (search, API calls, code execution)
JSON: Structured data extraction, form filling, classification tasks
Text: Simple chat, content generation, Q&A

Example:

tool_calling  # For agents with tools
json          # For structured outputs
text          # For chat/content

Tool Choice

Description: Controls how the LLM selects which tools to call.Type: SelectRequired: ConditionalVisibility: Only shown when Response Mode is “Tool Calling”Options:

Auto - LLM decides whether to call tools or respond with text
Required - LLM must call at least one tool (no text-only responses)
None - LLM cannot call tools (tools are visible but not callable)

Use Cases:

Auto: Standard agent behavior - LLM chooses when tools are needed
Required: Force tool usage (e.g., always run a search before answering)
None: Show tools to LLM for context but prevent calling them

Example:

auto      # Let LLM decide
required  # Always call tools
none      # No tool calls

Schema

Description: JSON schema that defines the structure of the expected response.Type: Schema BuilderRequired: ConditionalVisibility: Only shown when Response Mode is “JSON”How It Works:

Define the JSON structure you want the LLM to return
LLM output will conform to this schema
Useful for data extraction, classification, form filling

Example Schema:

{
  "type": "object",
  "properties": {
    "customer_name": { "type": "string" },
    "email": { "type": "string", "format": "email" },
    "issue_category": {
      "type": "string",
      "enum": ["billing", "technical", "general"]
    },
    "priority": { "type": "integer", "minimum": 1, "maximum": 5 }
  },
  "required": ["customer_name", "email", "issue_category"]
}

Use the Schema Builder UI to visually create JSON schemas without writing JSON manually.

Strict Mode

Description: Enforces strict validation against the defined schema in JSON response mode.Type: BooleanRequired: NoDefault: trueVisibility: Only shown when Response Mode is “JSON”Options:

true - LLM output must exactly match schema (recommended)
false - Allow minor schema deviations

When to Disable:

Schema is complex and LLM struggles to match it perfectly
You want LLM to have flexibility in output structure

Disabling strict mode may result in invalid JSON outputs that don’t match your schema.

System Prompt

Description: System instructions that define the LLM’s behavior, personality, and task.Type: Editor (supports template variables)Required: YesFeatures:

Template Variables: Use {{variable_name}} to inject data from previous nodes
Multi-line: Write detailed instructions
Markdown Support: Format prompts for clarity

Example:

You are a customer support agent for {{company_name}}.

Your role:
- Help customers with their questions
- Be friendly and professional
- Escalate complex issues to human agents

Customer Info:
- Name: {{customer.name}}
- Tier: {{customer.tier}}
- Issue: {{customer.issue}}

Respond concisely and helpfully.

Best Practices:

Be specific about the task
Provide examples when possible
Use variables to personalize responses
Test different prompts to optimize performance

Additional LLM Config

Description: Advanced model parameters for fine-tuning LLM behavior.Type: Input Schema (Dynamic)Required: NoCommon Parameters:

temperature (0-2) - Controls randomness (0 = focused, 2 = creative)
max_tokens - Maximum response length
top_p (0-1) - Nucleus sampling for diversity
frequency_penalty (-2 to 2) - Reduce repetition
presence_penalty (-2 to 2) - Encourage new topics
stop - Stop sequences to end generation

Example:

{
  "temperature": 0.7,
  "max_tokens": 1000,
  "top_p": 0.9,
  "frequency_penalty": 0.5
}

Guidelines:

temperature = 0: Deterministic, factual tasks (data extraction, classification)
temperature = 0.7: Balanced creativity (chat, support)
temperature = 1.5+: High creativity (storytelling, brainstorming)

Available parameters depend on the selected model. Some parameters may not be supported by all providers.

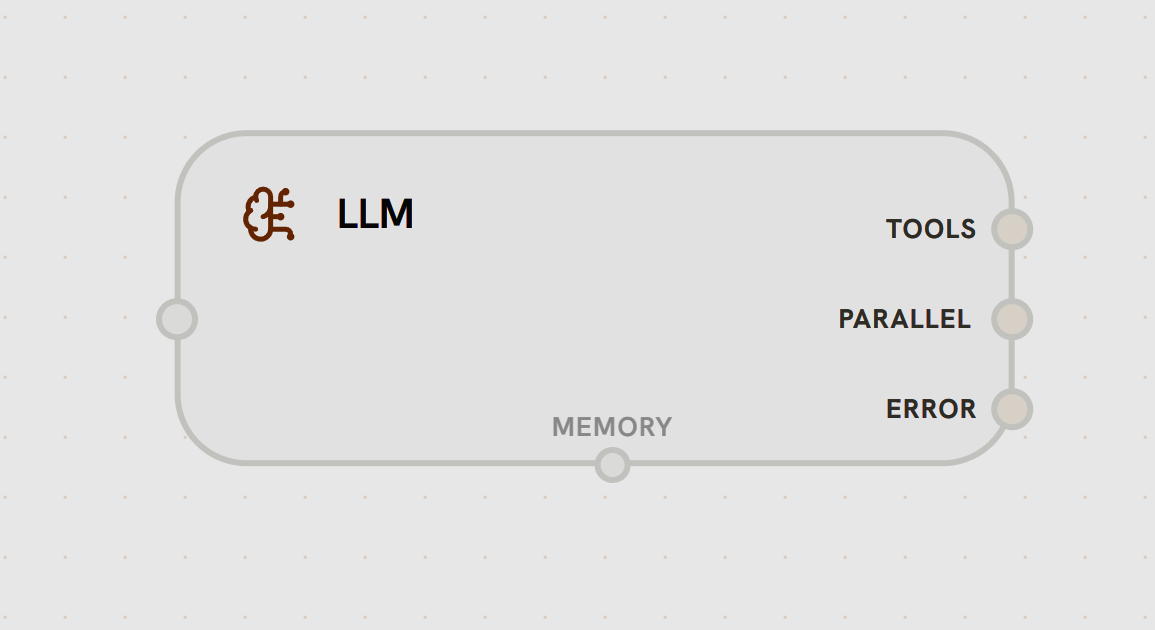

Node Handles

The LLM node has specialized input and output handles for different workflow paths:

Input Handle
Output Handles

Left Side - Main InputReceives data from previous nodes in the workflow. This is the primary execution trigger and data source for the LLM.Accepts:

Workflow context
User input/messages
Previous node outputs
Template variables

Tool Calling Behavior

The LLM node’s tool calling behavior differs based on its context in the workflow:

Outside Subflows (Main Workflow)
Inside Subflows (Agent Pattern)

Reactive Multi-Turn - One Call Per ExecutionWhen an LLM node is in the main workflow (not inside a subflow), tool execution is one-directional within a single workflow execution:Flow (Single Execution):

LLM analyzes the request
Decides which tool to use (if any)
Calls the selected tool via TOOLS handle
Tool executes and completes
Results go to the next node (not back to LLM in same execution)
Tool results are stored in memory (if memory connected)
Workflow completes

Next Execution (User Triggers Again):

LLM sees previous tool calls and results in memory
Can decide to call tools again based on memory
This is reactive - requires external trigger between tool calls

Key Point: Within a single execution, the LLM cannot loop back to see tool results. However, tool results are stored in memory and available on subsequent workflow triggers.Example:

Execution 1: User asks → LLM calls search tool → Tool results stored in memory → End

Execution 2: User asks follow-up → LLM sees search results in memory → LLM calls another tool → End

Execution 3: User continues → LLM sees all previous tool calls → Generates final answer

Characteristics:

✅ Tool results stored in memory
✅ Multi-turn across executions (reactive)
❌ No loop within single execution
❌ Requires external trigger (user message) between tool calls

Use Cases:

Chat-based assistants (user triggers each step)
Interactive workflows
Human-in-the-loop tool calling
Conversational agents with memory

Reactive Multi-Turn: The LLM can use tools across multiple executions via memory, but needs external triggers. It’s conversational, not autonomous.

Proactive Multi-Turn - Autonomous Loop Within ExecutionWhen an LLM node is inside a subflow with proper loop configuration, tool results return to the LLM within the same execution, enabling autonomous agentic behavior:Flow (Single Execution):

LLM analyzes the request
Decides which tool to use
Calls tool via TOOLS handle
Tool executes
Results return to LLM (via subflow loop)
LLM processes results in same execution
Decides: call another tool, or generate final response?
Repeat steps 2-7 until task complete
Generate final response and exit subflow

Key Point: The subflow loop structure enables tool results to return to the LLM within the same execution, allowing autonomous multi-step reasoning without external triggers.Agent Pattern Structure:

Subflow Start → LLM Node → Tool Node → (loop back) → LLM Node → End

The LLM can (within one execution):

Call multiple tools in sequence autonomously
See tool execution results immediately
Make decisions based on tool outputs
Refine queries and retry
Chain multiple tool calls
Generate final response after gathering information

Characteristics:

✅ Tool results return to LLM immediately
✅ Multi-turn within single execution (proactive)
✅ Autonomous - no external trigger needed
✅ True agentic behavior

Use Cases:

Research agents (search → analyze → search again, all in one execution)
Code generation (generate → test → fix → test, autonomously)
Multi-step problem solving
Complex decision-making workflows
Autonomous task completion

Proactive Multi-Turn: The subflow loop enables autonomous multi-step tool calling within a single execution. The LLM decides when it’s done, not the user.

Architecture Summary:

Context	Tool Results	Multi-Turn Type	Trigger Required	Use Case
Main Workflow	→ Stored in Memory	Reactive (across executions)	✅ User message	Chat assistants
Inside Subflow	→ Back to LLM	Proactive (within execution)	❌ Autonomous	Agent patterns

Key Distinction:

Reactive: Conversational - user drives the conversation
Proactive: Autonomous - LLM drives the execution

Key Features

Model Execution
Tool Calling
Memory Integration

Multi-Provider Support: OpenAI, Anthropic, OpenRouter, custom providers
Model Selection: Choose from hundreds of models
System Prompts: Define AI behavior with template variables
Streaming: Real-time response generation
Temperature Control: Adjust creativity vs. consistency

Example Use Cases

Customer Support

Build AI agents with CRM tool access for automated support

Research Assistant

Create agents that search, analyze, and synthesize information

Code Generation

Generate and execute code in sandboxes with multi-step refinement

Content Creation

Multi-step content generation with research and fact-checking

What’s Next?

Tool Node

Enable LLMs to take actions with tools

Memory Node

Add conversation memory to your LLM

Subflow Node

Create agent loops with tool calling

Variable Mappings

Use templates in system prompts
