What is a Workflow?

A workflow in Splox is a visual, node-based automation that connects AI models, tools, and integrations to accomplish complex tasks. Think of it as a programmable flowchart where each box (node) performs a specific action, and arrows (edges) define the execution path and data flow. Workflows are the foundation of Splox, enabling you to:

AI Agent Orchestration

Build autonomous agents that reason, plan, and use tools to complete complex tasks

Tool Integration

Connect AI agents to external tools, APIs, MCP servers, and third-party platforms

Agentic Behavior

Agents iterate autonomously — calling tools, processing results, and deciding next steps

Multi-Agent Systems

Create collaborative AI systems where multiple agents communicate with configurable execution modes

Conditional Logic

Route execution through branching paths with Switch nodes and conditional edges

Parallel Execution

Fan out to multiple branches and merge results back together

Key Capabilities

Visual Programming — Build complex logic without code using an intuitive canvas interface
Chat Mode — Test interactively with a conversational interface and real-time streaming
Flexible Patterns — Support for sequential, parallel, conditional, and agent-loop execution
Real-time Testing — See nodes execute live with immediate feedback and streaming output
Version Control — Track changes, publish versions, and roll back when needed
Voice & Realtime — Build voice-enabled agents with realtime audio capabilities

Workflow Structure

Node Types

Every workflow is built from 5 node types:

Start Node

Entry point that receives input data and triggers execution

Agent Node

Autonomous AI agent with LLM, memory, tool calling, and streaming

Tool Node

Executes operations via MCP servers, custom tools, or external APIs

Switch Node

Conditional branching with multiple operators and AND/OR logic

Merge Node

Waits for all parent branches to complete, then merges their outputs

You can also add Note nodes to annotate your canvas — these are visual-only and don’t execute.

Edge Types

Nodes connect through 4 edge types that control execution flow and data transfer:

Parallel Edges

Standard execution flow — triggers the next node when the source completes

Tool Edges

Connect an Agent’s TOOLS handle to Tool nodes for autonomous tool calling

Conditional Edges

Route execution from Switch nodes based on IF/ELIF/ELSE conditions

Error Edges

Activate when a node fails, enabling graceful error handling

Visual Canvas

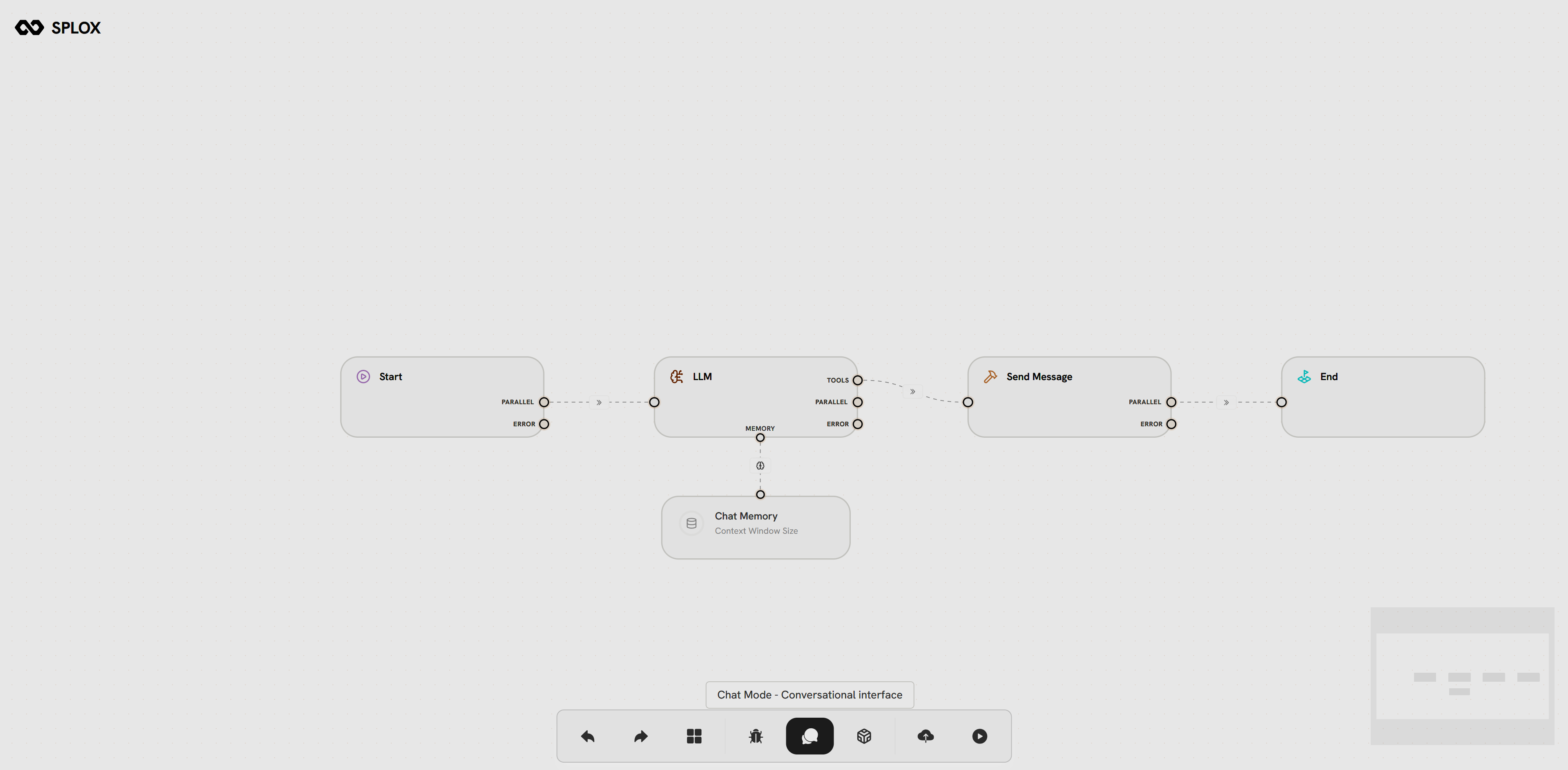

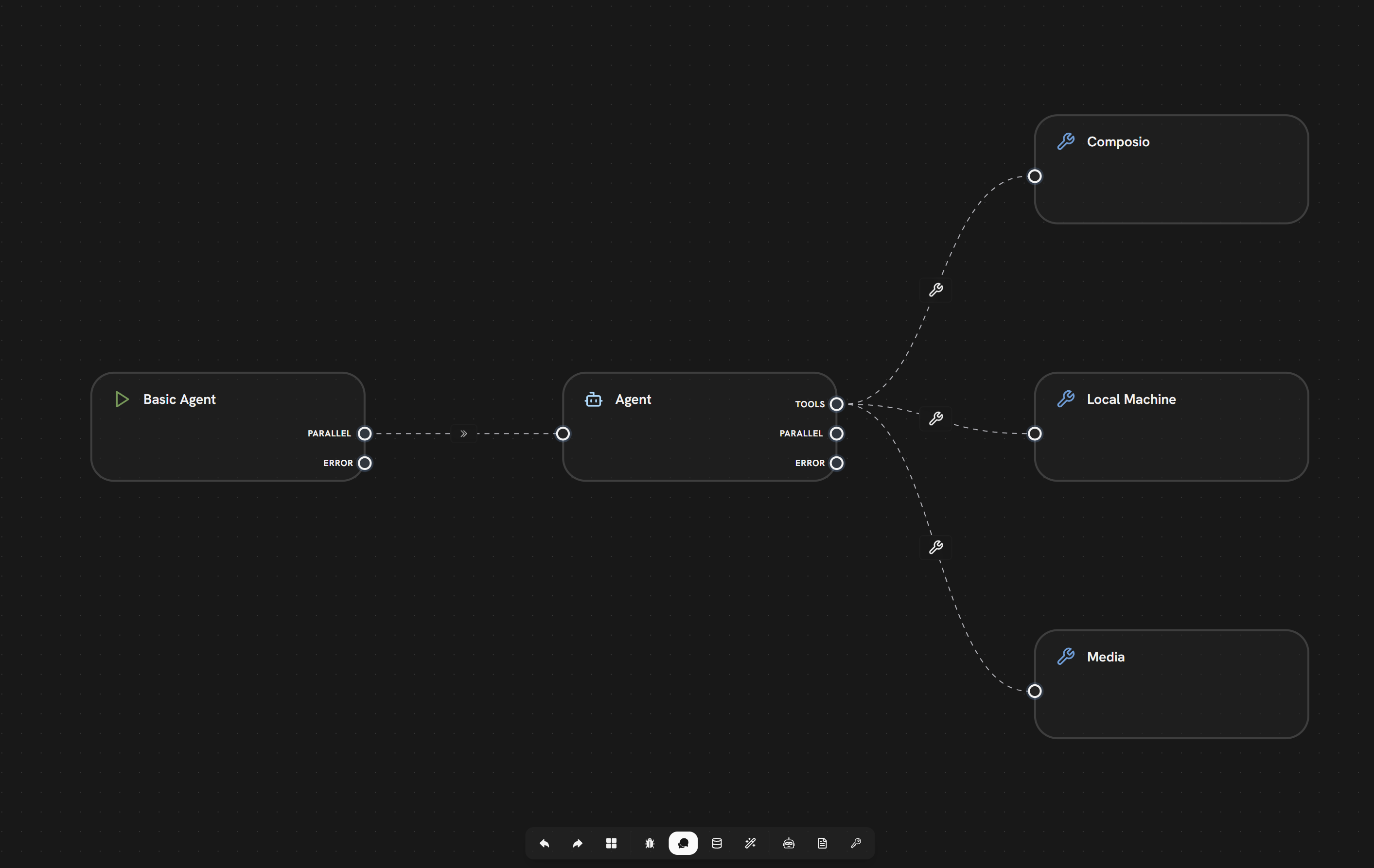

Workflows are built on a visual canvas with powerful editing capabilities:

Add Nodes

Right-click anywhere on the canvas to open a context menu with available nodes

Connect Nodes

Draw edges between nodes by dragging from output to input handles

Configure

Click any node to open its settings panel and configure parameters

Navigate

Pan by dragging the canvas, zoom with mouse wheel or trackpad

Workflow Lifecycle

Creation

When you create a new workflow, Splox automatically:

Generates a unique workflow ID
Sets up an empty canvas
Assigns it to your account
Creates initial configuration

Building

Build your workflow by:

Adding nodes from the context menu
Connecting nodes with edges
Configuring each node’s settings (LLM model, system prompt, tools, etc.)
Saving your changes

Start simple — begin with a Start → Agent flow and add complexity as needed.

Testing & Execution

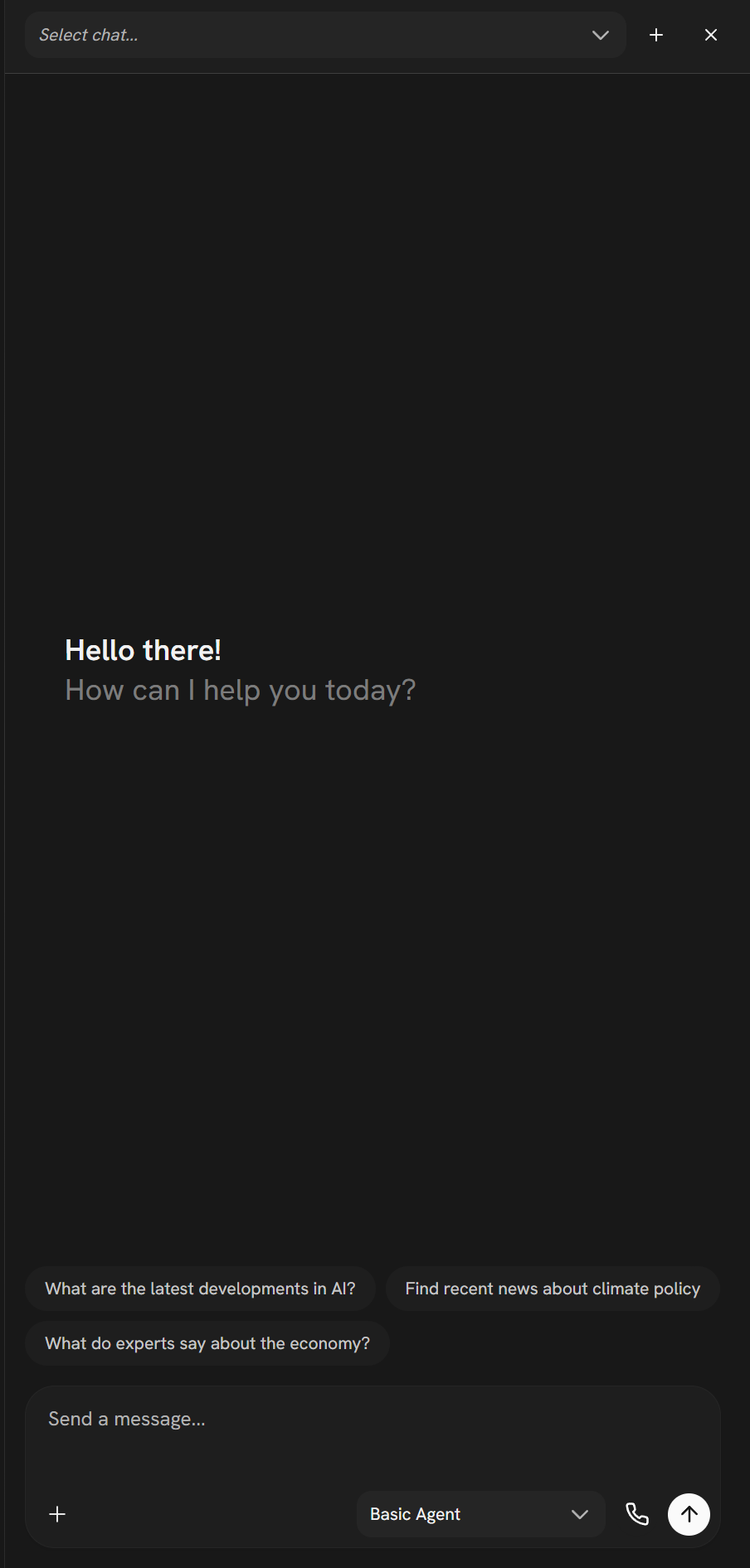

Chat Mode

Purpose: Interactive, conversational interface for testing and debugging workflows.Features:

In-editor sliding panel
Chat-based conversational interaction with real-time streaming
Node execution highlighting on the canvas
Multiple chat sessions management
Persistent chat history with context memory
Start node selection

Chat Actions:

Create new chat
Switch between existing chats
Clear chat memory (flush history)
Delete chat
Share chat publicly
Leave chat session

Execution Flow

Select Start Node

Choose where to begin execution from the available start nodes

Provide Inputs

Enter required parameters, messages, or upload files

Run Workflow

Execute using Chat Mode or the API

Monitor Execution

Watch real-time status updates and streaming output as nodes process

View Results

See agent responses, tool results, and review execution logs

Deployment

Once tested, deploy your workflow by:

Setting up triggers (webhooks, API calls)
Configuring execution settings
Enabling the workflow
Monitoring the first few runs

Monitoring

After deployment, monitor your workflow:

View execution history and tree
Check success/failure rates
Review error logs
Analyze performance metrics

Execution Model

Sequential Flow

The simplest pattern: nodes execute one after another.

Each node completes before the next one begins. Data flows forward through variable mappings.

Parallel Execution

Use parallel edges to fan out and a Merge node to fan back in:

Both Agent nodes run simultaneously. The Merge node waits for all parents to complete, then combines their outputs (objects are merged, arrays concatenated).

Conditional Branching

Use the Switch node for conditional logic:

The Switch node evaluates conditions with operators like contains, equal, greater_than, starts_with, is_empty, and more. Each case routes to a different branch via conditional edges.

Agent Tool Loop

The Agent node is the core of agentic workflows. It autonomously calls tools, processes results, and iterates until the task is complete — all within a single node:

How the Agent Loop Works:

Agent Receives Input

The Agent node receives input from its parent (Start node payload, previous node output, or variable mappings) and appends it as a user message to its context memory.

LLM Reasoning

The Agent’s configured LLM analyzes the conversation context (system prompt + memory + current input) and decides what action to take. It can either respond with text or call one or more tools.

Tool Execution

If the LLM requests tool calls, the Agent executes them via connected Tool nodes (through tool edges). Tool results are appended to the conversation context.

Iteration

The Agent loops back to the LLM with tool results. The LLM can call more tools or produce a final response. This continues until:

The LLM responds without tool calls (task complete)
The max iterations limit is reached (configurable, default: 50, max: 50)

Output

The Agent’s final response flows to downstream nodes via parallel edges.

Key Agent Capabilities:

Context Memory
LLM Configuration
Iteration Control
Streaming

The Agent has built-in conversation memory — no separate memory node needed.

Memory ID: Links conversations across executions (e.g., {{ start.chat_id }})
Limit Type: Token-based or message-based limits
Trim Strategy: drop_oldest or drop_middle when limits are reached
Summarization: Automatically summarize old messages to preserve context
Custom Messages: Inject predefined messages into the conversation

Provider & Model: Choose from Anthropic, OpenAI, Gemini, OpenRouter, and more
System Prompt: Jinja2 template with variable mapping support
Tool Choice: auto, required, none, or specific tool name
Thinking Tokens: Enable extended thinking for complex reasoning
Streaming: Real-time token-by-token output
Cache Control: Optimize costs with prompt caching

Max Iterations: 1–50 (default: 50). Limits how many tool-call rounds the agent can perform.
On Tool Error: continue (skip failed tools) or fail (stop the agent)

Enable Streaming: Real-time token output via SSE
Chat Streaming Mode: session for persistent chat, or per-execution
Voice/Realtime: Audio streaming with supported providers (OpenAI, Gemini)

Multi-Agent Workflows

Multiple Agent nodes can be connected to create collaborative multi-agent systems. When one Agent connects to another via a tool edge, the child agent becomes a tool the parent can call. The child agent can be configured with different execution modes:

Sync
Async Inject
Async Bidirectional
Fire & Forget
Handoff

sync — Parent agent blocks and waits for the child agent to complete before continuing.Best for: Sequential delegation where the parent needs the child’s result to proceed.

async_inject — Parent agent continues immediately. When the child completes, its result is automatically injected into the parent’s conversation context.Best for: Background tasks where the parent can continue working while waiting for results.

async_bidir — Both agents run concurrently. The child agent gets a reply_to_parent tool to send messages back to the parent at any time.Best for: Collaborative agents that need ongoing communication.

fire_forget — Parent triggers the child and continues immediately. No response is expected or received.Best for: Side effects, logging, notifications, or tasks where the result doesn’t matter.

handoff — Parent agent exits completely, transferring control to the child agent. The child takes over the conversation.Best for: Routing to specialized agents (e.g., escalation from a triage agent to a support agent).

Agent-to-Agent Configuration: When connecting agents, you can configure:

Execution Mode: How the child agent runs relative to the parent (see tabs above)
Child Tool Name & Description: How the child agent appears as a tool to the parent
Reply Tool Name & Description: For bidirectional mode, how the reply-to-parent tool appears

Collaboration Patterns:

Orchestrator Model: One agent coordinates tasks by delegating to specialized child agents
Peer-to-Peer: Agents communicate bidirectionally using async_bidir mode
Pipeline: Agents chain sequentially, each processing and passing results forward
Handoff Chain: Agents hand off control based on the conversation topic

Multi-agent workflows excel at complex tasks that benefit from specialized expertise, parallel processing, and collaborative reasoning.

Error Handling

Every node can have an error edge that activates when the node fails:

When a node fails:

Its parallel (success) edges are marked as skipped
Its error edges are activated, routing to fallback nodes
Downstream nodes on the skipped path are also marked as skipped

For Agent nodes, the on_tool_error setting controls whether individual tool failures cause the entire agent to fail (fail) or are reported back to the LLM to handle gracefully (continue).

Error edges are indicated by red connections in the workflow editor.

Node Execution States

During execution, each node transitions through these states:

Status	Description
Pending	Node is queued, waiting for parent nodes to complete
In Progress	Node is currently executing
Completed	Node finished successfully
Failed	Node encountered an error
Blocked	Node is waiting for external input (e.g., tool approval)
Skipped	Node was skipped (parent took a different branch or failed)
Stopped	Execution was manually stopped
Waiting	Node is waiting for async child agents to complete

For detailed state transitions, see the Node Lifecycle documentation.

Best Practices

Start Simple

Begin with a Start → Agent flow, then add tools and complexity as needed

Use Descriptive Labels

Name nodes clearly: “Research Agent” not “Node 1”

Handle Errors

Add error edges to critical nodes for graceful failure handling

Set Iteration Limits

Configure appropriate max iterations on Agent nodes to prevent runaway loops

Leverage Context Memory

Use the Agent’s built-in memory for conversational workflows instead of managing state manually

Choose Execution Modes

Use the right agent-to-agent execution mode — sync for dependencies, fire_forget for side effects
